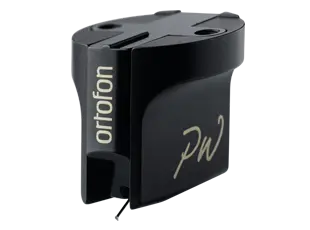

Ortofon MC Windfeld
Lägg till en bevakning så meddelar vi dig så snart varan är i lager igen.
Ortofon MC Windfeld
Märke: Ortofon
Modell: MC Windfeld
2-års fabriksgaranti
Ny i originalkartong, med manual
Modell: MC Windfeld
| Output voltage at 1000 Hz, 5cm/sec. | 0,3 mV |
| Channel balance at 1 kHz | < 0,2 dB |
| Channel separation at 1 kHz | > 28 dB |
| Channel separation at 15 kHz | > 22 dB |
| Frequency range at - 3dB | 10-80.000 Hz |
| Frequency response FIM distortion at recommended | 20-20.000 Hz + / - 1 dB |
| Tracking ability at 315Hz at recommended tracking force *) | 100 µm |
| Compliance, dynamic, lateral | 16 µm/mN |
| Stylus type | Nude Ortofon Replicant 100, special polished |
| Stylus tip radius | r/R 5/100 µm |
| Tracking force range | 2,3-2,8 g (23-28 mN) |
| Tracking force, recommended | 2,6 g (26 mN) |
| Tracking angle | 23° |
| Internal impedance, DC resistance | 4 Ohm |
| Recommended load impedance | > 10 Ohm |
| Cartridge body material | Stainless steel/special alloy |
| Cartridge colour | Black/Black |
| Cartridge weight | 13 gram |
| *) Typical value |
Ny i originalkartong, med manual
